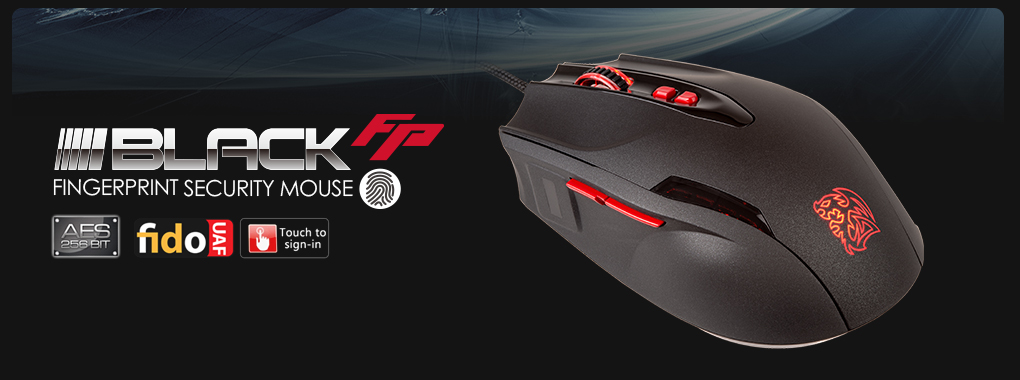

BLACK FP Gaming Mouse with Fingerprint Security
Win 7,8,10 Software and Win 10 Security Center Installation Guide
Installing the software
- BLACK FP Software
- Windows login for Win 7, 8, 10
1. Visit the product page and download the latest Command Center software.
2. Follow the onscreen prompt to complete installation.
3. Restart you PC.

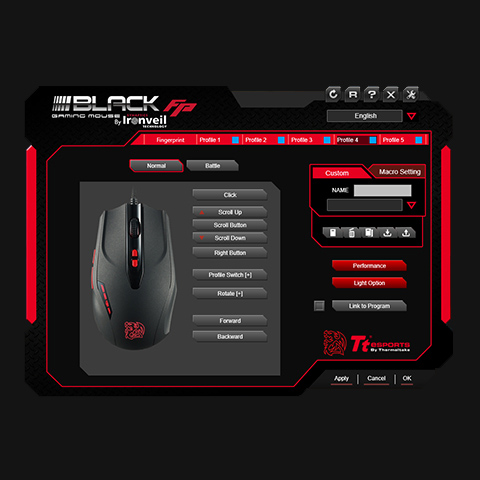

4. From the system tray, select the Tt eSPORTS Command Center icon to enter software.
Registering your fingerprint:
Once loaded, move your mouse curser to
the tab box named ‘Fingerprint’ to begin
registering your fingerprint with the
Note: first time registration requires entry of Windows

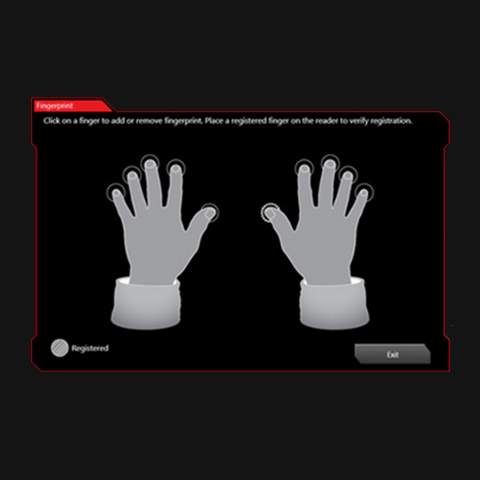

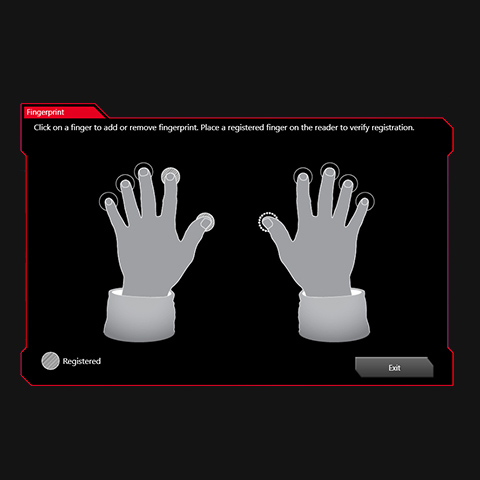

Select desired fingerprint for registration.
Note: a maximum of 10 fingerprints can be set at a time.

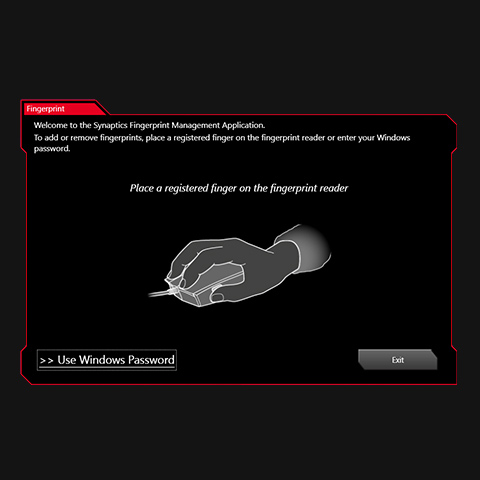

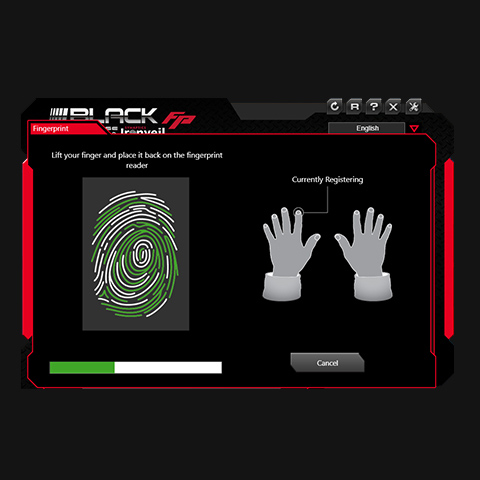

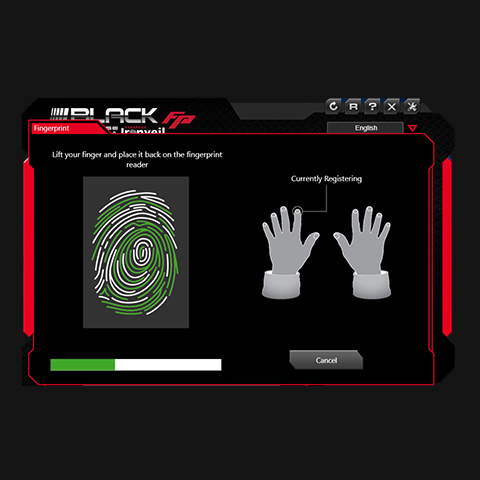

Place selected finger on the fingerprint
sensor of the BLACK FP and lift and rest
Note: if registration of fingerprint fails, please
reattempt the process again until successful.

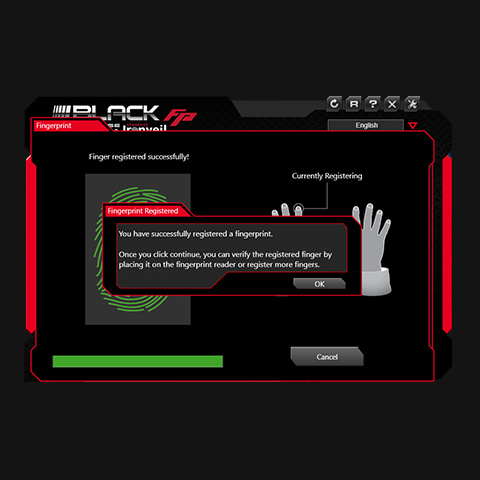

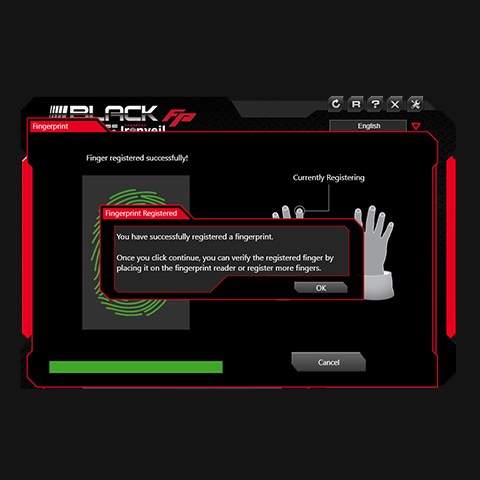

Upon successful registration of your fingerprint,
a message notification will popup to notify that
the registration has now been successfully
Note: WIN 10 users may also do a quick test by pressing the
shortcut Windows Key + L for quick logout to confirm
*It is recommended that you register your fingerprint using the Command Center so6ware first
Installing the Security Center for Windows 8.1 & 10
- Windows 8.1 & 10 login
- Website login
- File and folder encryption
1.Visit the product page and download the
latest Security Center software.
2. Follow the onscreen prompt to complete
installation (Chrome users will be prompted
to install a ‘Chrome Extension’ in order to
use the full security center features.)
3. Restart your PC.
4. Upon restart an automatic screen will
popup to register your security
5. If not, at the start screen, type security
center, and then select security center to
open the application

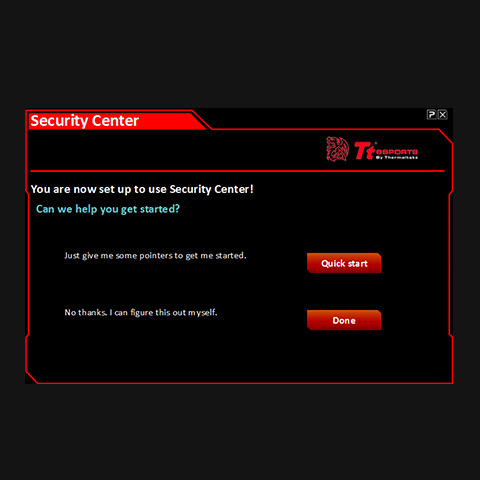

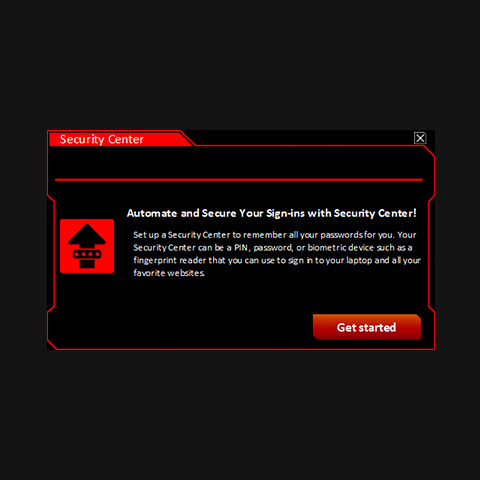

6. Click the ‘Get Started’ button

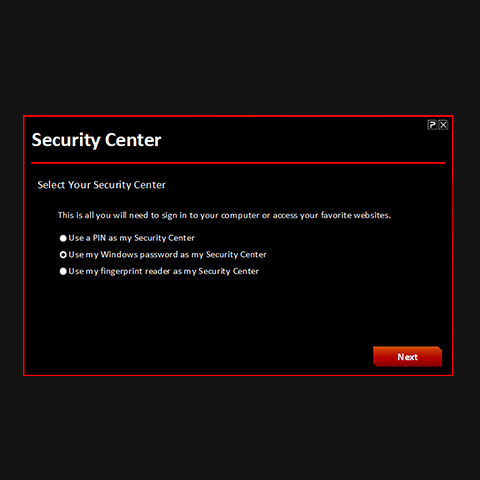

Selecting Your Security Center
Select a Security Center method (PIN,
password, or fingerprint reader) for logging on
to Windows and your password-protected
website accounts, then click Next.
Selecting PIN Method:

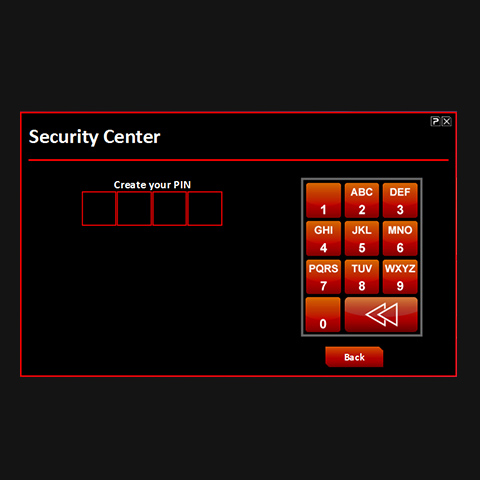

Enter your desired 4-digit pin

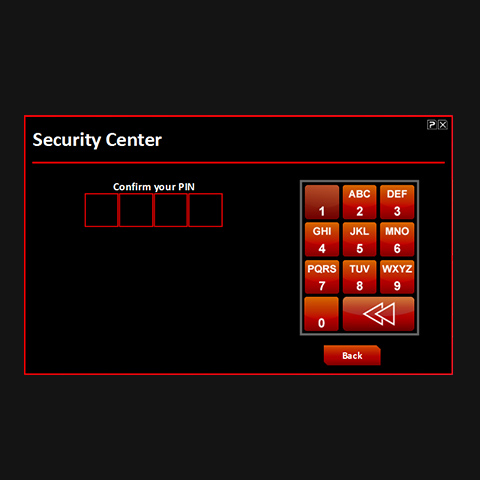

Re-enter your 4-digit pin to confirm
Pin registration successful

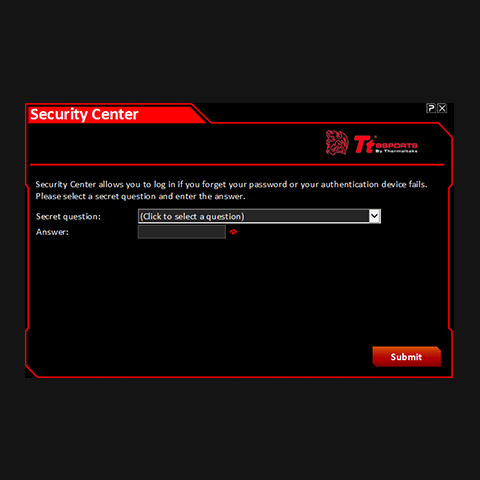

Selecting Password Method:
Select desired secret question and enter
desired answer and click submit.
Password registration completed.

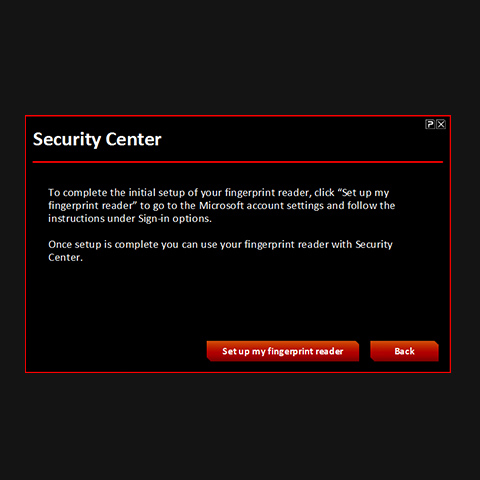

Selecting Fingerprint Reader Method:
Select setup my fingerprint reader.

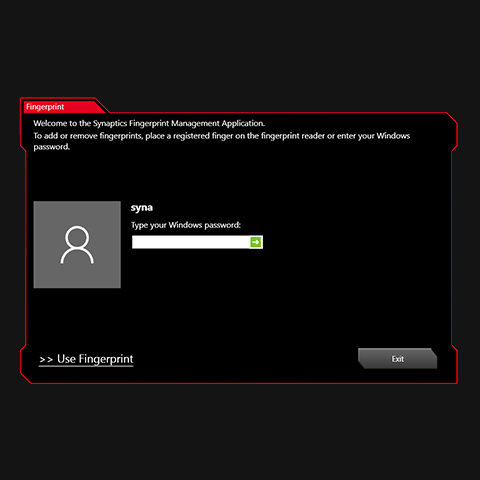

For first time registration select ‘Use Windows
Password’ to enter.
Enter your current windows password.
If fingerprint has been previously registered
with the Command Center software , press
Note: one fingerprint can only be registered to one account. If a fingerprint is already registered to another account, a popup message will appear to inform you to register another.

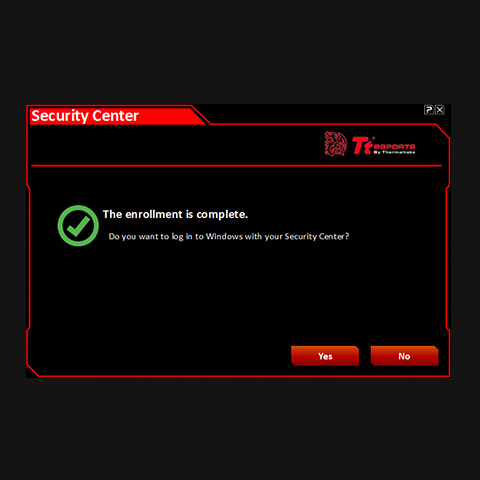

It is recommended that you register more
than one fingerprint, if not, simply select ‘yes’
Registering Website Credentials in Security Center
Instantly open your browser and automatically log on to your password-protected website accounts by registering the website accounts and credentials in the Security Center. Supported browsers include Internet Explorer, Firefox, and Chrome.
Registering a website creates an icon that represents the website account you are registering in Security Center. Registering a website account also securely stores the website name, web address, username, password, and other applicable information associated with the website account in Security Center.
Note: Passwords containing the ”+“ symbol may not be saved using Security Center.
Registering Website Accounts
Having completed set up of the Security Center, you can register your website accounts.

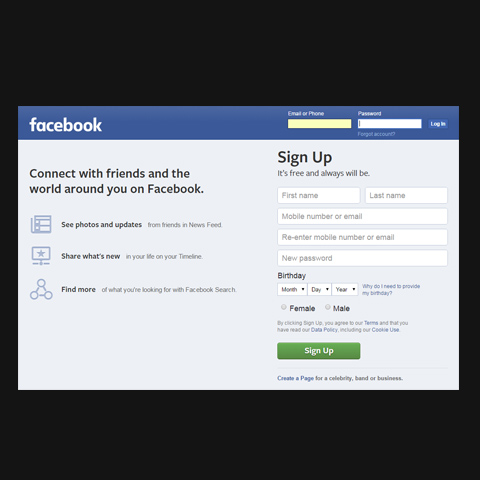

Open a web browser and navigate to a website where you have a password-protected account.
Log on with your username and password for the website account.

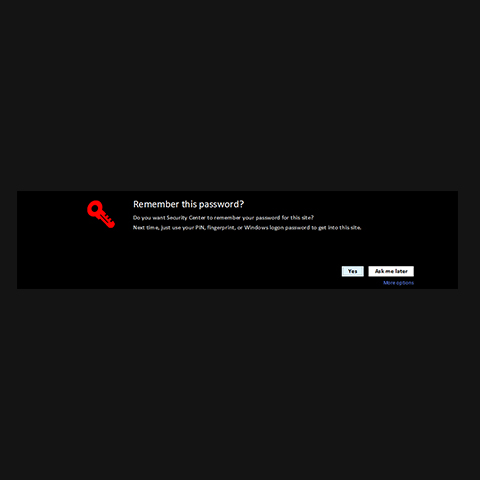

A Security Center screen will display to
request ‘Remember this password.’

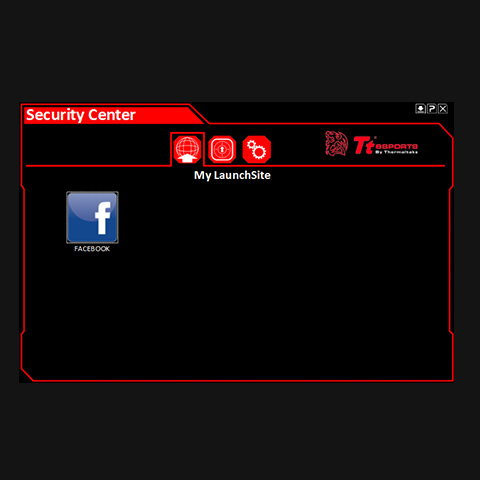

My Launchsite records all saved

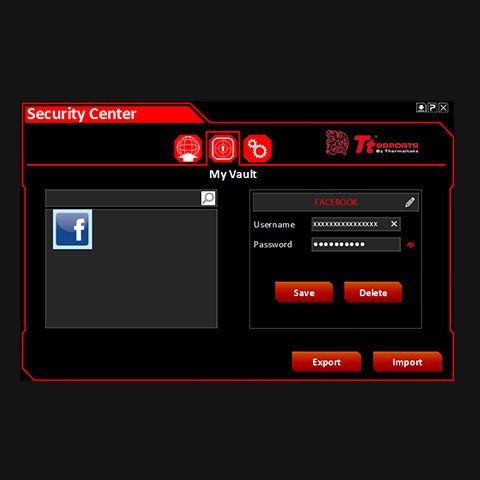

My Vault displays all saved accounts
together with usernames and
passwords. User also has the option to
Note: If you change one or more of your
website passwords, you will also need to
update on ‘My Vault’ by either deleting and reregistering
the site or my modifying the
password in the text box.

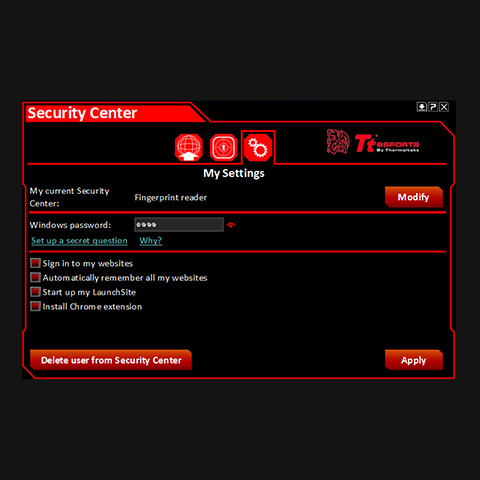

Users have the option for the Security
Center to automatically register your
other website accounts by simply going
to ‘My SeWngs’ and clicking
‘automatically remember all my
websites’ In doing so, when a user logs
onto their password protected website,
the dropdown prompt will no longer
show up asking you to remember your
password. It will be automatically saved.
Note: Users can also change the ‘Current
Security Center’ method by selecting ‘Modify’ to
switch between pin, password and fingerprint options.

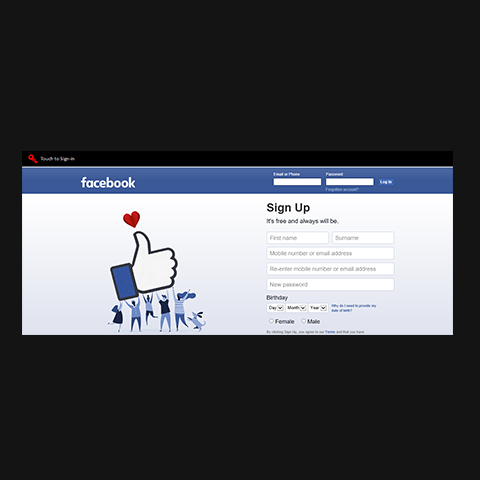

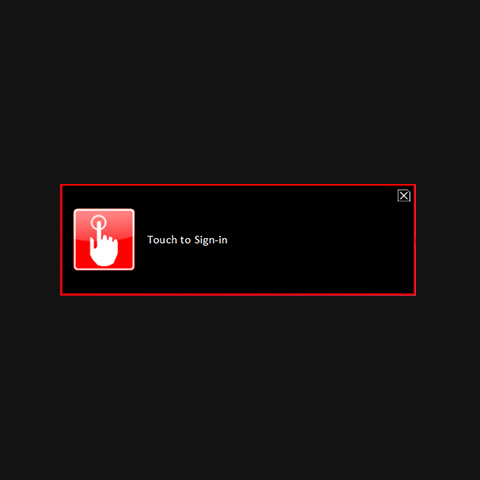

The next time you visit the password
protected site, an automatic‘ Touch to sign
in’ dropdown box will activate and you
simply use your registered fingerprint.
Deleting your Security Center
Follow these steps to remove the Security Center:
Make sure that you know your Windows User Account password before deleting your Security
Center. Once the Security Center is deleted, Windows requires your Windows User Account
password to unlock the computer. deleting your Security Center also deletes your Security Center
Settings, registered websites, and website account logon information.
1. Click the Security Center icon in the desktop taskbar, then log on using your PIN,
password, or fingerprint.
2. Click the My Settings icon to open the My Settings screen, and then click Delete.
3. Click Confirm
Your Security Center is now deleted. You can set up a new Security Center by following the steps in
Setting up Security Center.
File and Folder Encryption

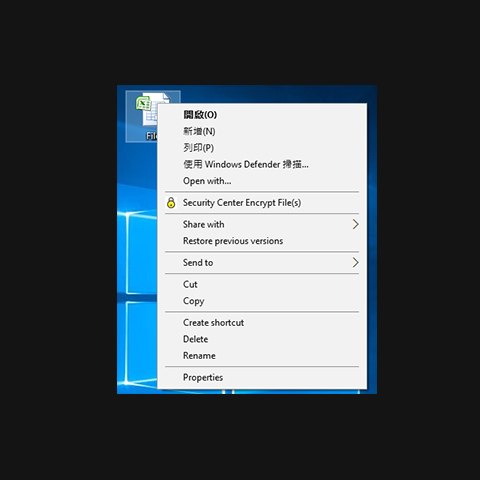

To encrypt a file or folder, simply select the desired
file/folder and right click.
From the dropdown menu, select ‘Security Center
Encrypt File(s)’ which will bring up the
authentication method selected originally.
Depending on the security method you choose
earlier, user must confirm encryption by either
pin, password or fingerprint reader method.

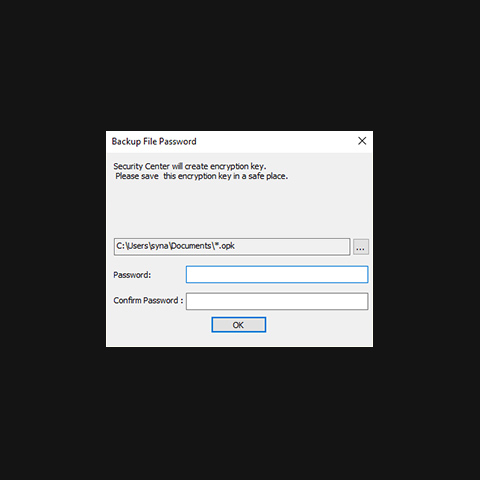

Once confirmed, user will then be asked to
input a ‘Backup File Password’ just in case user
is unable to access file via the original method.

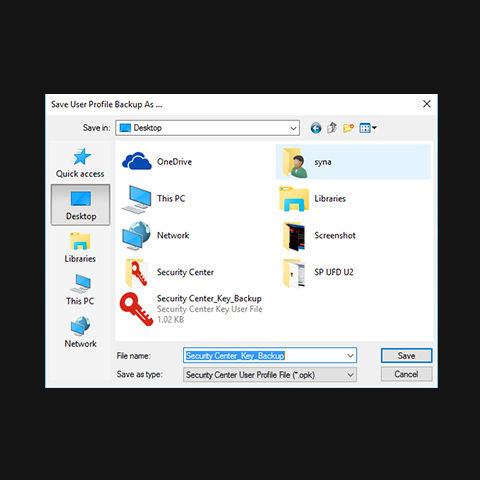

Save the backup security key file to desired

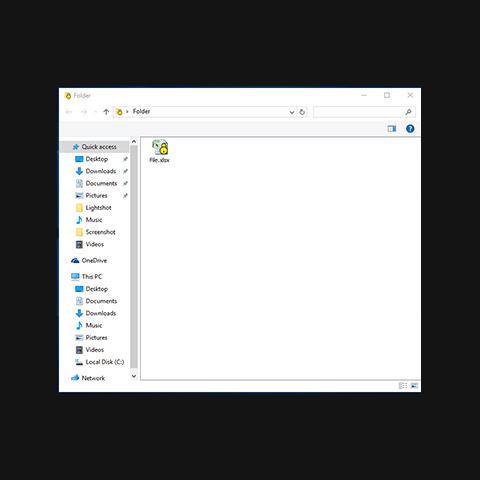

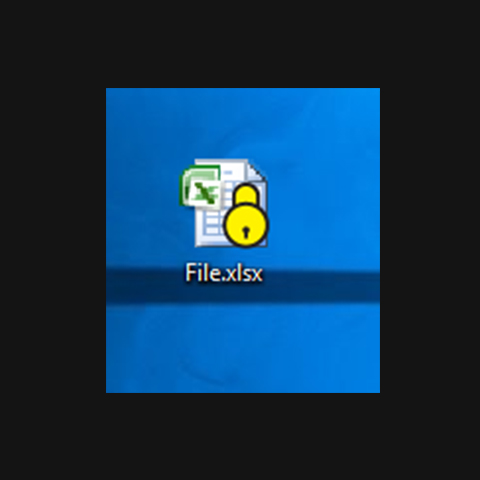

The file/folder encryption process will begin and
once completed, your file or folder will display a
padlock icon Indicating that the file is now secure.

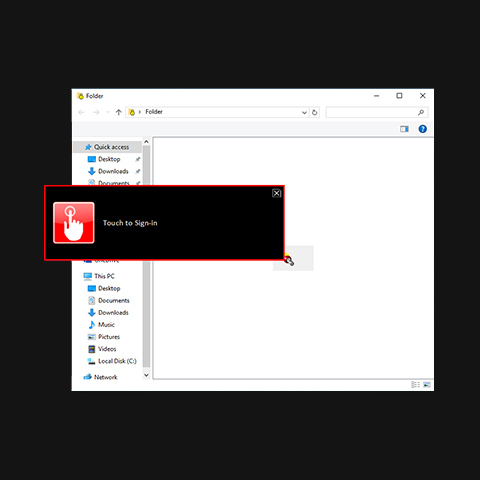

Accessing Encrypted Files & Folder
Simply double click on the encrypted file or
folder where you will be prompted for
Once authentication is successful you will have
Note 1: Files in protected folders can be
edited without the need to reapply password
protection. Simply double click the file in the
folder for access.
Note 2: If the file is moved outside of the
protected folder, such as the Desktop, the file
will need to be re-protected again.

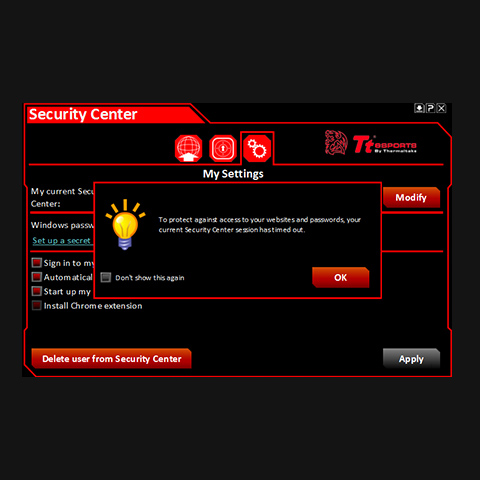

If the Security Center is left open and idle for
over 1 minute, the session will automatically
expire and as a security precaution, you will be
required to login again with your
